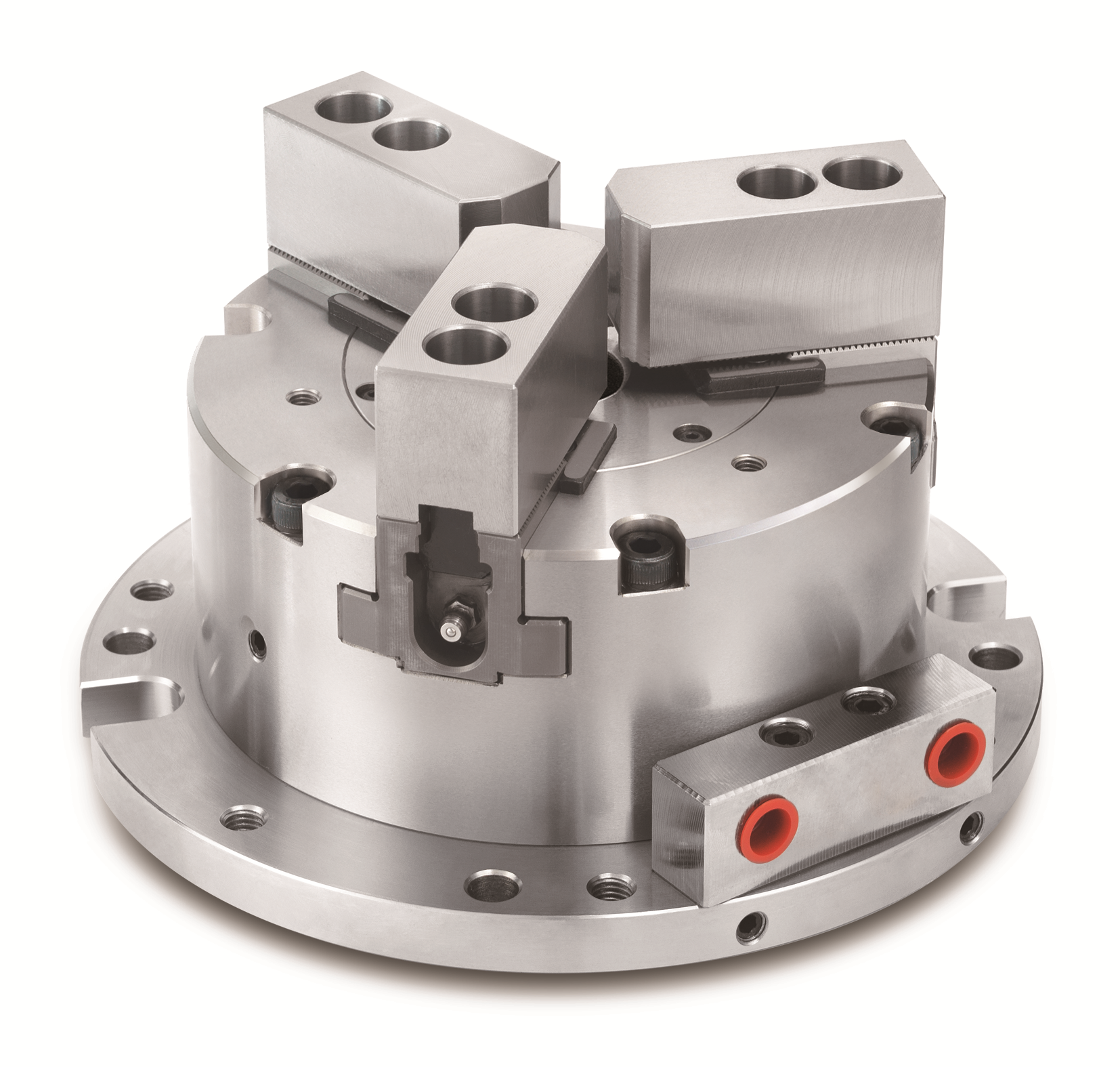

HOLLOW POWER CHUCK FIXTURES (4

MP-M(4"~6")

HOLLOW POWER CHUCK FIXTURES (4"~6")

  • NEW

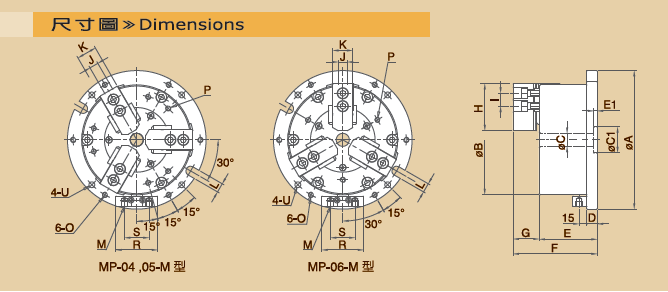

DIMENSIONS

HOLLOW POWER CHUCK FIXTURES (4

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Piston Area
(cm2)		 Plunger
Stroke
(mm)		 Jaw Stroke
[Diameter]
(mm)		 Max.Gripping
Force
kgf (kN)		 Max Hydr.
Pressure
kgf/cm2(MPa)		 Gripping
Range
MP-04-M 57 9.5 4 2400(23.5) 15(1.5) ø11~ø115
MP-05-M 71.5 10 5.3 3200(31.3) 20(2.0) ø12~ø135
MP-06-M 105 10 5.3 4700(46) 20(2.0) ø20~ø170
MODEL / SPEC A B C C1 D E E1 F G H
MP-04-M 157 115 -- 40 13.5 78 4.5 104.5 26.5 49.5
MP-05-M 185 135 -- 40 15 85 5.5 118 33 62
MP-06-M 224 170 20 40 16 90 5.5 130.5 40.5 73
MODEL / SPEC I J K L M S R P U O
MP-04-M 14 10 23 13 2-PT1/8 47 64 6-M6x1P (PCDø90) ø9 (PCDø135) M8x1.25P (PCDø135)
MP-05-M 14 10 25 13 2-PT1/4 47 80 6-M8x1.25P (PCDø110) ø9 (PCDø165) M8x1.25P (PCDø165)
MP-06-M 20 12 31 18 2-PT1/4 47 80 3-M8x1.25P (PCDø120) ø11 (PCDø202) M10x1.5P (PCDø202)
