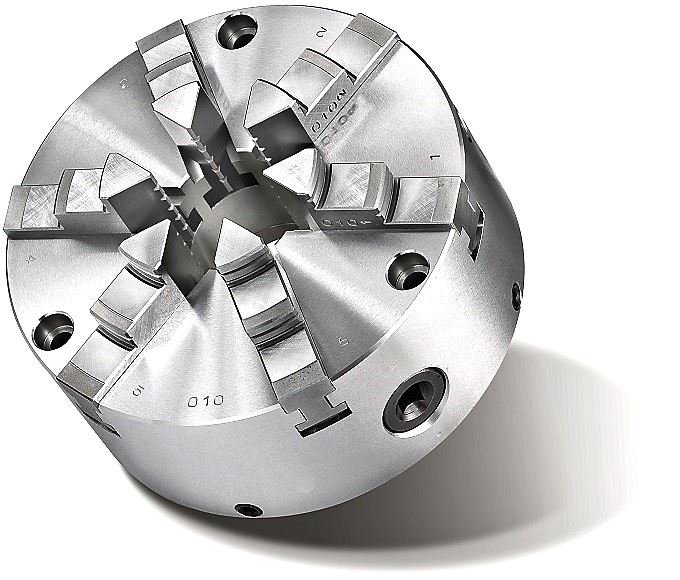

6-Jaw Adjustment Steel Body Scroll Chucks

6DACT

6-Jaw Adjustment Steel Body Scroll Chucks

SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Max.Speed
r.p.m(min-1)		 Max.Gripping
Diameter
O.D.Clamping		 Max.Gripping
Diameter
I.D.Clamping
6DACT-08 2900 ø4-ø183 ø51-ø170
6DACT-10 2200 ø6-ø249 ø70-ø233
6DACT-12 1800 ø10-ø305 ø81-ø288
6DACT-15 1300 ø14-ø406 ø105-ø387

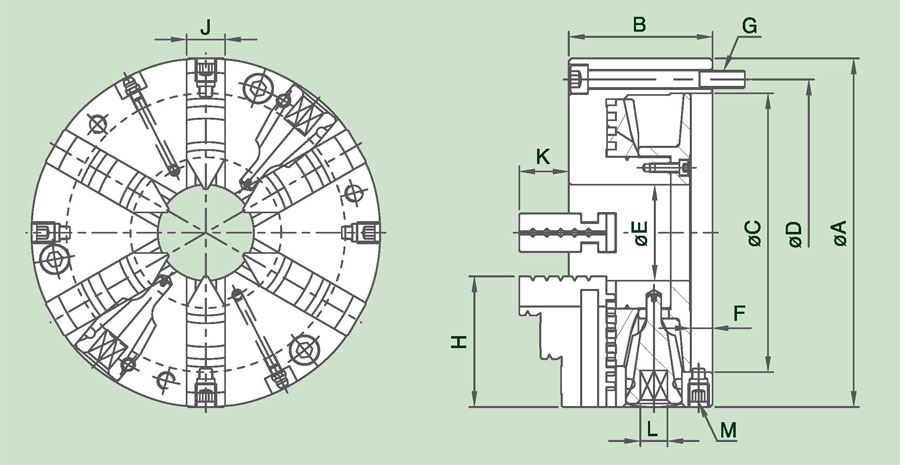

MODEL / SPEC Dimensional
drawing		 2D drawing 3D drawing
6DACT-08
6DACT-10
6DACT-12
6DACT-15
