Rotary Hydraulic Cylinders
L

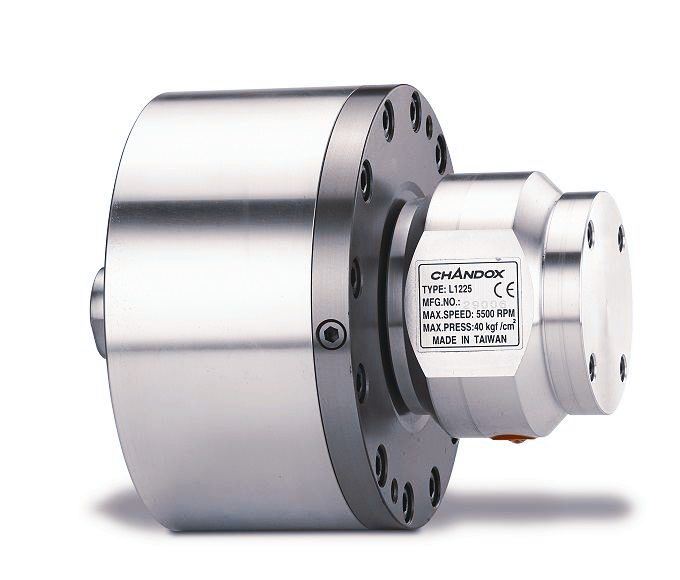

Solid Rotary Hydraulic Cylinders
Hydraulic chuck
2D、3D
Horizontal Machining
1. The solid rotary cylinder has a closed structure and can be installed in either a vertical or horizontal direction.
2. Hydraulic rotary cylinder is used to actuate the power chuck clamping action.
CATALOG DOWNLOAD
SPECIFICATIONS
UNIT/mm
Inquiry
MODEL / SPEC
Piston Stroke
(mm)
Max.Speed
r.p.m(min
-1
)
Moment of Inertia
(kg·m
2
)
Oil Leakage Rate
(ℓ/min)
Max.
Pressure
kgf/cm
2
(MPa)
Piston Area
Push Side
(cm
2
)
Piston Area
Pull Side
(cm
2
)
Max.
Operating
Force
Push Side
kgf(kN)
Max.
Operating
Force
Pull Side
kgf(kN)
Weight
(kg)
Processing please wait
L0815
15
6000
0.006
0.8
40(3.9)
44
37
1600(15.7)
1400(13.7)
4.2
Processing please wait
L1020
20
5500
0.013
0.8
40(3.9)
86
79
3100(30.4)
2900(28.4)
5.9
Processing please wait
L1225
25
5500
0.023
0.8
40(3.9)
122
113
4500(44.1)
4100(40.2)
8.1
Processing please wait
L1530
30
4000
0.048
0.8
40(3.9)
176
160
6300(61.8)
6000(58.8)
11.9
Processing please wait
L2035
35
4000
0.098
0.8
40(3.9)
314
290
11300(110.8)
10400(102.0)
21.4
MODEL / SPEC
Dimensional
drawing
2D drawing
3D drawing
L0815
L1020
L1225
L1530
L2035
