L-R

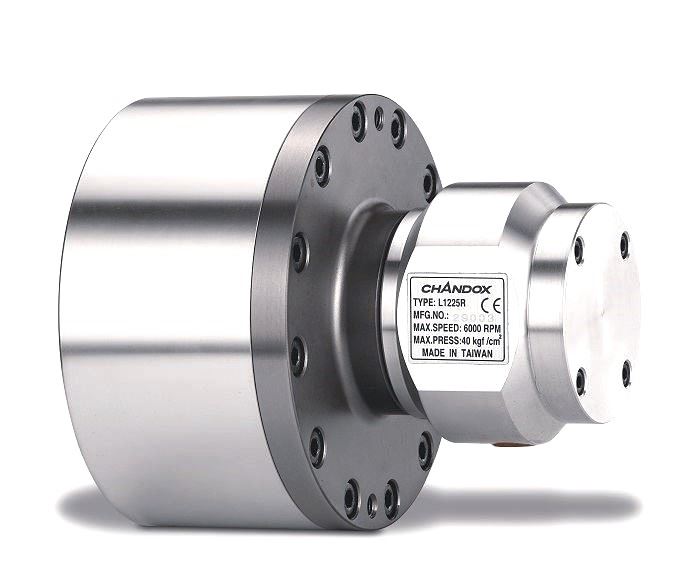

Solid Rotary Hydraulic Cylinder(BUILT-IN CHECK VALVE)

1. The solid rotary cylinder has a closed structure and can be installed in either a vertical or horizontal direction.
2. Hydraulic rotary cylinder is used to actuate the power chuck clamping action.
4. Super thin structure:Super thin outer structure reduces the interference with machines and lowers the burden of machines.。



SPECIFICATIONS

UNIT/mm

Inquiry MODEL / SPEC Piston Stroke
(mm)
Max.Speed
r.p.m(min-1)
Moment of Inertia
(kg·m2)
Oil Leakage Rate
(ℓ/min)
Max.
Pressure
kgf/cm2(MPa)
Piston Area
Push Side
(cm2)
Piston Area
Pull Side
(cm2)
Max.
Operating
Force
Push Side
kgf(kN)
Max.
Operating
Force
Pull Side
kgf(kN)
Weight
(kg)
L1020R 20 6000 0.013 0.8 40(3.9) 86 79 3100(30.4) 2900(28.4) 6.6
L1225R 25 6000 0.023 0.8 40(3.9) 122 113 4500(44.1) 4100(40.2) 8.8
L1530R 30 5500 0.048 0.8 40(3.9) 176 160 6300(61.8) 6000(58.8) 12.8
L2035R 35 5500 0.098 0.8 40(3.9) 314 290 11300(110.8) 10400(102.0) 22.5
MODEL / SPEC Dimensional
drawing
2D drawing 3D drawing
L1020R
L1225R
L1530R
L2035R
