Rotary Hydraulic Cylinders
PA

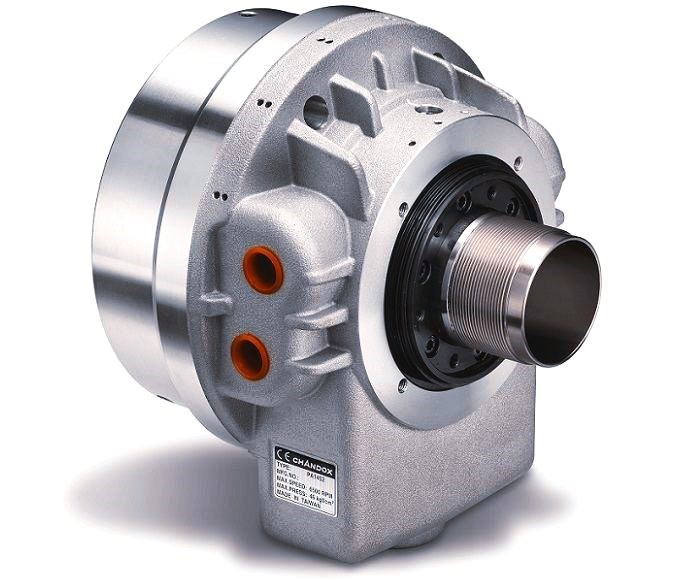

High Speed Compact Hollow Rotary Hydraulic Cylinders
2D、3D
Horizontal Machining
CATALOG DOWNLOAD
SPECIFICATIONS
UNIT/mm
Inquiry
MODEL / SPEC
Piston Stroke
(mm)
Max.Speed
r.p.m(min
-1
)
Piston Dia
(mm)
Moment of Inertia
(kg·m
2
)
Oil Leakage Rate
(ℓ/min)
Max.
Pressure
kgf/cm
2
(MPa)
Piston Area
Push Side
(cm
2
)
Piston Area
Pull Side
(cm
2
)
Max. Operating
Force
Push Side
kgf(kN)
Max. Operating
Force
Pull Side
kgf(kN)
Processing please wait
PA1246
16
8000
128
0.02
3.0
46(4.5)
103.5
92
4250(41.6)
3800(37.5)
Processing please wait
PA1452
22
6500
145
0.035
3.9
46(4.5)
134
123
5500(53.9)
5100(50)
Processing please wait
PA1775
25
5500
170
0.065
4.2
46(4.5)
165
151
6800(66.7)
6300(61.8)
MODEL / SPEC
Dimensional
drawing
2D drawing
3D drawing
PA1246
PA1452
PA1775
